Function and Characteristic

  • Much more flexible for small customized flag and fabric banner orders
  • Lower energy consumption, 5 KW for preheating, 2 KW for printing
  • Shorter print format with shorter preheatng time
  • Small machine body, the least space limitation

Specification

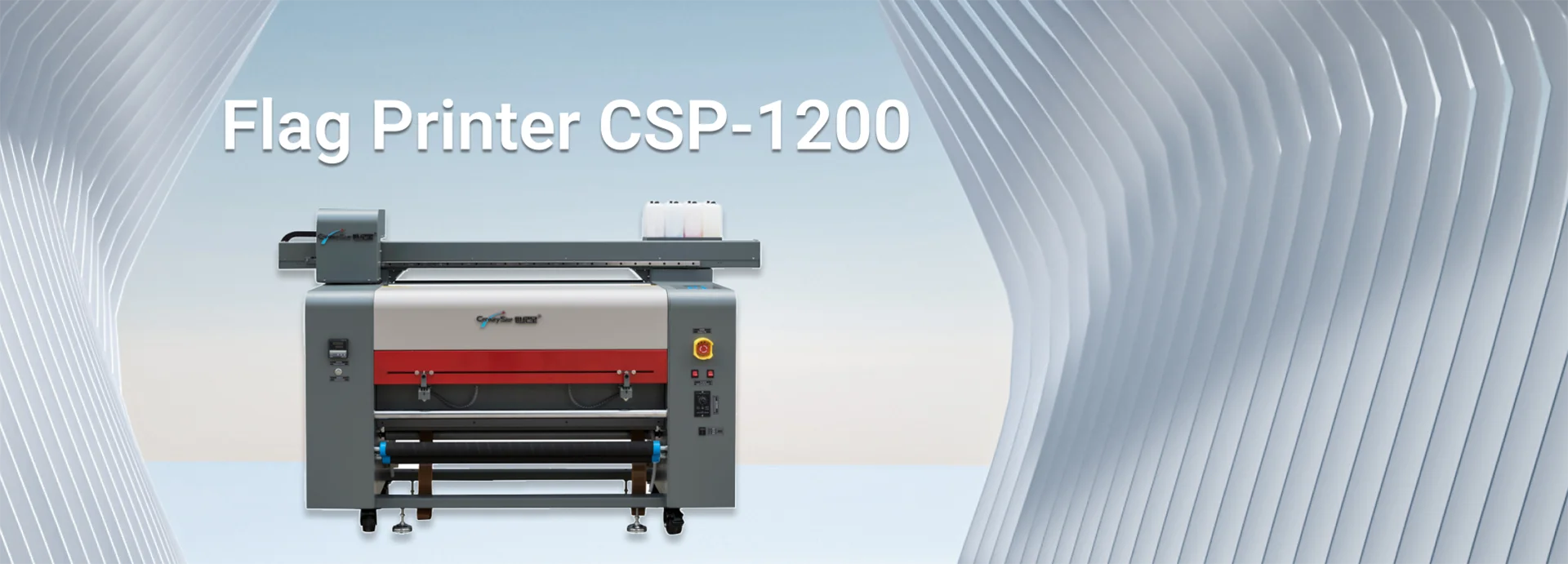

Printer ModelCSP-MINI1200
Print Format1200 mm
Print HeadEPSON 13200
Print Head Position2
InksSublimation inks
Ink ColorCMYK
Print Accuracy360*1200 dpi/360*1800 dpi/720*1200 dpi
Print Speedproduction mode- 65㎡/h
H quality mode- 55㎡/h
H precision mode- 40㎡/h
Output SoftwarePhoto Print /Main Top
Picture ModeBitmap, TIFF, Quark, Xpress,Eps, PDF etc.
Input Power220V±10%(AC 50/60HZ) Heating:5KW; Printing:2KW
Working ConditionTemperature 20℃-28℃ Humidity:40%-70%RH
DimensionsL:2110mm W:750mm H:1250mm
